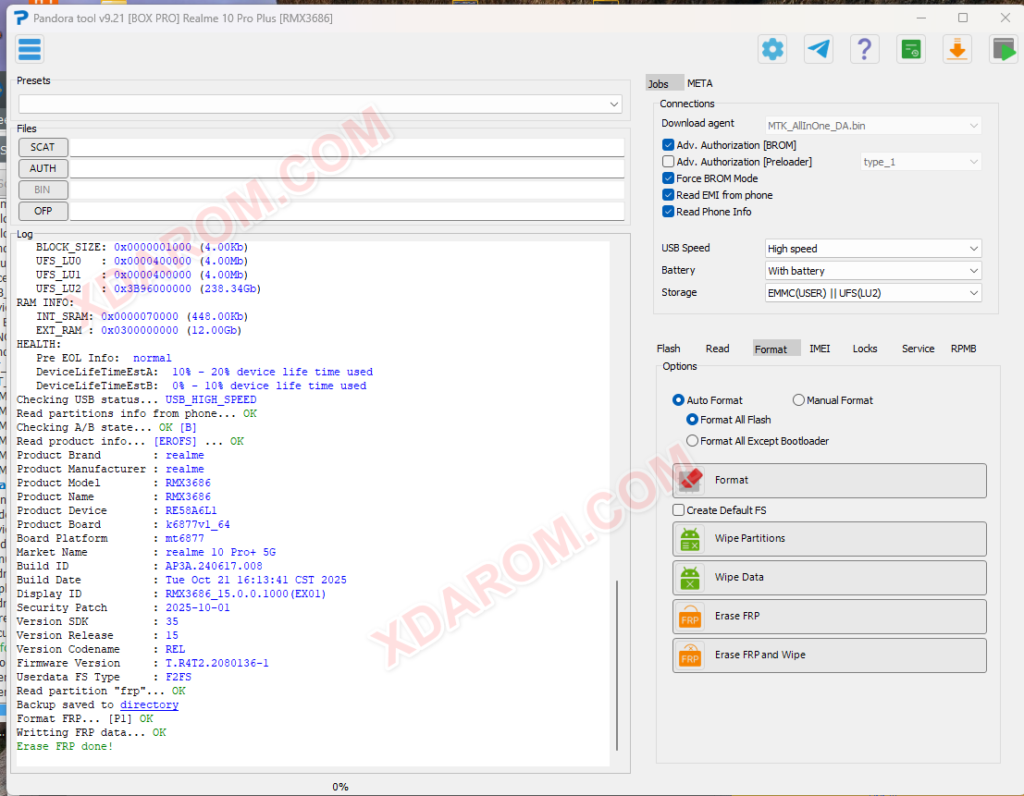

Selected model: Realme RMX3686 (Realme 10 Pro Plus)
Operation: Erase FRP
Software version: 9.21
Connect Type-C to NONE… OK
Host Power Off… OK
Connect phone to [PC] in BROM/PRELOADER Mode
Waiting for device… OK
Driver: [MediaTek Inc.,wdm_usb,MediaTek USB Port,usb2ser.sys,3.0.1504.0]
Device found at COM550 [BROM]
Open port… OK
Send start cmd… OK
Get HW code from device… 0959
Get sec config… OK [000000E5]
Active sec flags: [SBC DAA]
Get HW & SW version from device… OK
HW VER: CA00, SW VER: 0000, HW SUB CODE: 8A00
Detect chip [MT6877]
LibUSB installed
Library Version [2]
Select platform… OK
Init BROM… OK
Force Charge… OK
Disable WatchDog Timer… OK

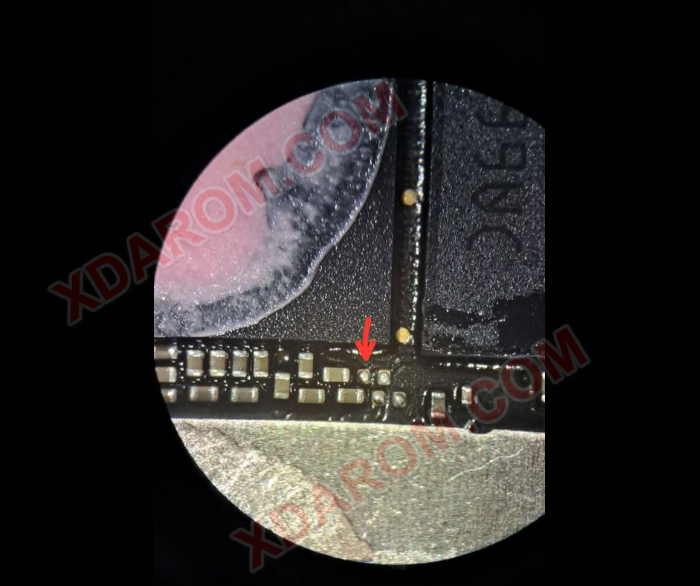

Release testpoint, waiting 2 seconds
Advanced Bypass Security… OK
Waiting for device… OK
Driver: [MediaTek Inc.,wdm_usb,MediaTek USB Port,usb2ser.sys,3.0.1504.0]
Device found at COM550 [BROM]
Open port… OK
Send start cmd… OK
Get HW code from device… 0959
Get sec config… OK [000000E0]
Active sec flags: []
Get HW & SW version from device… OK
HW VER: CA00, SW VER: 0000, HW SUB CODE: 8A00
Detect chip [MT6877]
Library Version [2]
Select platform… OK
Init BROM… OK
Force Charge… OK
Disable WatchDog Timer… OK
Reopen port for libver2… OK
Get ME ID… OK
ME_ID = 0xEDCF85F2, 0xB46BB2A6, 0x4FF87B22, 0x0FBF2876
Get Chip ID… [MT6877]
Get SOC ID… [910A35EA7C6705615E1DCF7065604BD752F96AAB760D049E24CC4BDF554DD19B]
Get sec config… OK [000000E0]
Load DownloadAgent… OK
Search DA… OK [17]
Send preloader… OK
Start preloader… OK
Checking preloader answer… OK
Send bootloader… OK
Start bootloader… OK
Wait for answer from bootloader… OK
Send SYNC signal… OK
Setup device enviroment… OK
Setup device parametres… OK
Receive DA SYNC signal… OK
Set DA parametres… OK
Get device connection agent… [BROM]
Get device info… OK
UFS CID (FW VER): H9QT1GGCN6X147 (A003)
Load EMI from phone… OK
Parse EMI config… OK
Init EXT RAM… OK
Send 2nd DA… OK
Get device info… OK
UFS INFO:
UFS_CID : H9QT1GGCN6X147
UFS_FWVER : A003
BLOCK_SIZE: 0x0000001000 (4.00Kb)
UFS_LU0 : 0x0000400000 (4.00Mb)
UFS_LU1 : 0x0000400000 (4.00Mb)
UFS_LU2 : 0x3B96000000 (238.34Gb)
RAM INFO:
INT_SRAM: 0x0000070000 (448.00Kb)
EXT_RAM : 0x0300000000 (12.00Gb)
HEALTH:
Pre EOL Info: normal
DeviceLifeTimeEstA: 10% – 20% device life time used
DeviceLifeTimeEstB: 0% – 10% device life time used
Checking USB status… USB_HIGH_SPEED
Read partitions info from phone… OK
Checking A/B state… OK [B]
Read product info… [EROFS] … OK
Product Brand : realme
Product Manufacturer : realme
Product Model : RMX3686
Product Name : RMX3686
Product Device : RE58A6L1
Product Board : k6877v1_64
Board Platform : mt6877
Market Name : realme 10 Pro+ 5G
Build ID : AP3A.240617.008
Build Date : Tue Oct 21 16:13:41 CST 2025
Display ID : RMX3686_15.0.0.1000(EX01)
Security Patch : 2025-10-01
Version SDK : 35
Version Release : 15
Version Codename : REL
Firmware Version : T.R4T2.2080136-1
Userdata FS Type : F2FS
Read partition “frp”… OK
Backup saved to C:/Program%20Files%20(x86)/Z3X/Pandora/Backup/MTK/Realme_RMX3686%20(Realme%2010%20Pro%20Plus)/FRP_BACKUP_(2026-3-2_15-16-7)/
Format FRP… [P1] OK
Writting FRP data… OK
Erase FRP done!
